Here is what N4184R looks like after the avionics panel replacement.

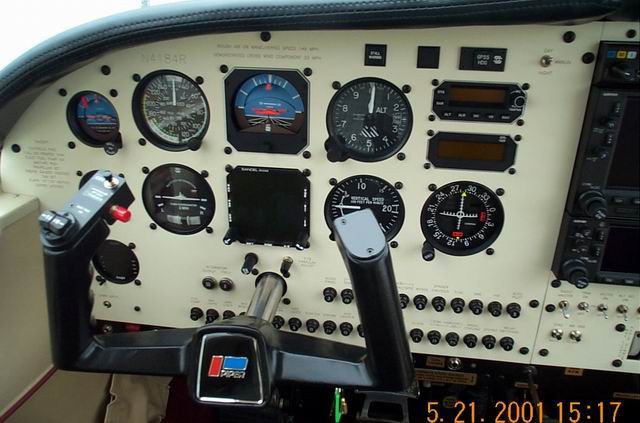

 This
is the left side of the new panel. Notice that the AI has a flight
director, and below that a Sandel SN3308 HSI. The Sandel is a very cool
instrument. With two bearing pointers, a GPS or Heading pointer, a moving
map display, including the flight track from the Garmins, and the WX-500
Stormscope data, this instrument is pure pleasure to use.
In the far left, there is a backup electric AI, to use if the vacuum system
or the primary AI ever fails. I considered putting this on the far right
side of the panel, for use by the co-pilot, but this would have meant having to
move some of the engine instruments, which would have mean more FAA paperwork
and approval. No thanks.

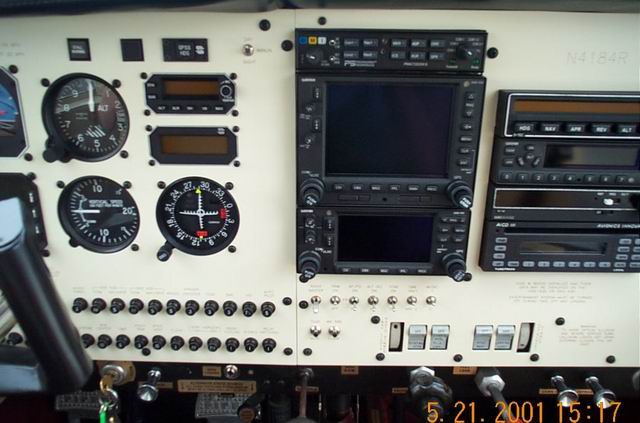

 This
is a picture of the middle of the new panel. On the left, you can see the
new altimeter and VSI, the auto-pilot control panel and indicators, and the #2
VOR indicator. At the top of the middle "stack" is the PS
Engineering PE7000MS audio panel & intercomm. Underneath are the two
Garmin GPSes: a GNS 530 and a GNS 430. Below them are the avionics power
switches.
The GNS 530 and 430 pair are a dual system of GPS receivers, with embedded
communication and navigation radios. The GPSes are interconnected for
"flight plan flow through", which means that if the #1 GPS fails, the
#2 GPS carries on, uninterrupted, including sending signals to the autopilot and
SN3308. Also, if either GPS fails, the GNSes are designed with internal
dual backplanes, so that their nav/comm radios remain independent of GPS power
and electrical problems. The only problem which will affect both the GPS
and radios is if the display screen goes out (in which case #2 display is
available).
I use the top GNS for flight plan setup, display, and tracking, and the
bottom GNS for radio work, frequency tracking, and other information that the
GNSes are capable of displaying. While I'm fiddling with the knobs on #2,
the #1 display continues showing the current flight plan.

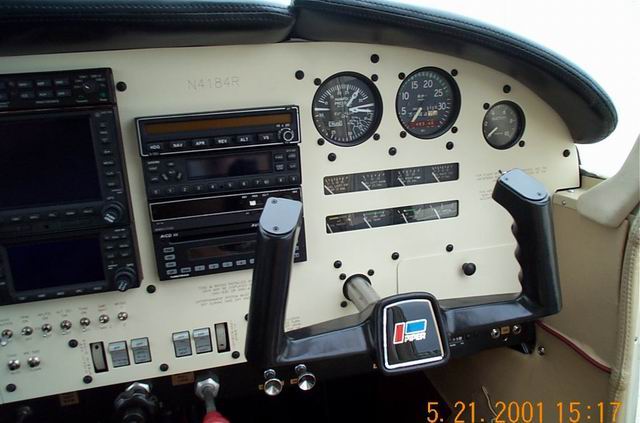

 This
is the right side of the new panel. You can see the Garmins on the left
side. The next "stack" is the S-Tec System 55X auto-pilot main
control panel, the Garmin GTX-327 digital transponder, the original King DME
(it's still a useful instrument for IFR, even though the GPSes can also show
distance), and then the AM/FM radio/CD player.
The radio, in conjunction with the awesome features of the PS7000MS, has come
in very handy for those long 3 and 4 hour flights across the Midwest. The
CD is a very handy way to keep the kids entertained; the music can be switched
off for the crew, while the kids continue enjoying it. And, when the co-pilot is
playing arbitrator to the squabbling kids, the "Isolate" switch is
very handy to keep the pilot from missing any communications.

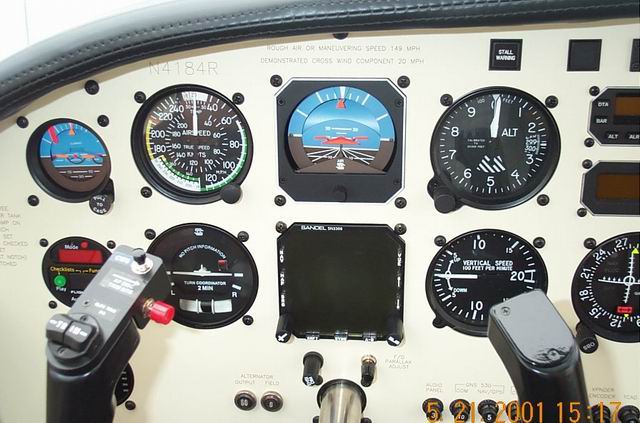

Here is another "pilot's view" of the new panel:
 You
can see the DVR-300 clock on the far left, below the electric AI.
The system, as a whole, works very well. As part of my
pre-flight:
- I program the flight plan into the GPSes (which can store 20 plans for
easy later reuse).
- For checklists, it's possible to use either the plastic one (that I
bought), the audible one that I programmed into the DVR-300, or the visual
one that I programmed into the GPSes.
- Set the altitude alerter to the proper barometer setting (along with the
altimeter, of course).
- Dial the HSI's bug to the assigned departure heading
- Set the altitude alerter at the clearance altitude (typically 1500 or
3000).
After takeoff:
- I place the S-Tec S55 autopilot into "HDG" mode, and with VS set
to "+7" or higher (at sea level). At this point, the plane
will track to the HDG bug on the SN3308, and climb at +700 FPM until it
reaches the altitude programmed into the altitude alerter, at which point it
will level off.
- If I am assigned new headings, I dial the HDG bug accordingly, and the
plane tracks.
- If I am assigned or released from an altitude restriction, I push
"VS" on the autopilot control and dial in the appropriate climb
rate.
One of my friends, also a pilot, once said to me: "You're not flying a
plane; you're playing a video game!" This guy is even more of a geek
than I, so I took it as a compliment.
Establishing the Flight Plan:
- When released from the assigned heading, I then hit the "FP"
button on the #1 GNS, which shows the flight plan, indicating the current
(first) waypoint.
- Since the flight track to the first waypoint is based on an origin of
somewhere at the airport, and since we're no longer at the airport, I hit
the "direct" button, and redirect the flight plan from our current
location, instead of some reference point at the departure airport.
- A second later, the GPS flight plan is established, I hit the "GPSS/HDG"
button, and switch to GPSS mode, which causes the autopilot to track to the
GPS flight plan instead of the HSI heading bug, even though the autopilot is
in HDG mode. Often, there will be a slight turn to track since we'll
have moved on from the point at which the new flight track origin had been
reset.
- Alternatively, I could push the "NAV" button on the auto-pilot,
which causes it to take its input from the current "NAV"
source.
This is the part that gets interesting: The Sandel 3308 HSI has a "NAV"
source button (top left) which controls which input source is to be used for
navigation. It can be one of "GPS1", "GPS2",
"Nav1", "Nav2", "ILS1" and
"ILS2". The latter two are actually the same physical source
as the two Navs, but show "ILS" when the frequency range is that
of a localizer.
Anyway, with the autpilot in "NAV" mode, it and the Garmins can be
switched between having GPS and NAV as the input source with the Sandel's
Nav button, or with the "GPS/VLOC" button on either Garmin.
It may sound complicated but it's actually quite intuitive. It's
harder to explain than it is to use.
Reaching cruise altitude:
- Once we've reached our assigned altitude, and assuming that I've correctly
entered the right numbers into the altitude alerter, the autopilot should
level off at that altitude.
- It's important to understand and remember that the autopilot knows nothing
about airspeed. If you program a vertical speed that is not possible
for the airplane (eg: 800 FPM at 10,000 ft.), the autopilot will dutifully
trim the plane in a valiant but futile attempt to set the right pitch to
achieve that rate of climb, and, if you don't recognize the problem soon
enough, it will stall the plane.
For "fun", I often tune the navigation radios to the upcoming or
nearby VORs or NDBs, and enable the SN3308 bearing pointers so that I can
triangulate and confirm location with means other than just the GPS.
Another fun thing: to get the current "winds", the GPS has a page
which automatically displays the current wind speed and direction. I often
use this page as I am approaching an airport, and during the downwind leg to
confirm the winds based on GPS calculations. The ATIS, ASOS or AWOS
information may not be local to the airport, and it may not be current, so
having the GPS provide real-time wind numbers is very handy. Of course, I
always look for the wind sock at the airport, too. Technology makes things
fun, but always have a backup to technology -- because it will
fail at some point.
On the AUX pages, the Garmins have Fuel Planning pages, by which an estimate
of fuel needed to reach the programmed destination, as well as fuel remaining
upon arrival can be reviewed. It's based on input including the current
fuel flow.
There is also a Trip Planning page in the AUX section of the Garmins, with
which the total time enroute as well as the destination local time can be
reviewed.
The Garmins and autopilot are also incredibly helpful during IFR
flights. Since GPS navigation includes a CDI indicator, the Garmins are a
legal substitute when suffering a partial panel failure of the DG (in my case,
the Sandel HSI) and/or AI.
I received my IFR
certificate in July, 2002, and I've been flying IFR consistently ever since.
